TensorFlow.jsを使ってKerasで作成したモデルを利用してみる

みなさん,こんにちは。
シンノユウキ(shinno1993)です。

機械学習にはPythonを使う必要がある,ということはよく言われているかと思います.しかし,Googleから公開されているTensorFlowのJavaScript版であるTensorFlow.jsを利用することで,ブラウザ上で手軽に機械学習を行うことができます.今回はその方法と簡単な例を紹介したいと思います.

ではいきましょう!

スポンサーリンク

TensorFlow.jsとは?

はじめに,今回紹介するTensorFlow.jsを紹介したいと思います.

TensorFlow.jsのオリジナルであるTensorFlowというのは,Googleが公開している機械学習用のオープン・ソースのライブラリです.PythonやJavaなどから利用できるAPIを備えています.

TensorFlow.jsはそのJavaScript版です.ブラウザ上で機械学習モデルのトレーニングや,そのデプロイできるようになります.

またトレーニングだけでなく,既存の学習済みモデルを読み込んで利用したり,そのモデルを再学習することができるようになります.機械学習の成果をWeb上で利用するためには最適なツールと言えるでしょう.

公式ページは以下からご確認ください.

TensorFlow.js | Machine Learning for JavaScript Developers
Train and deploy models in the browser, Node.js, or Google Cloud Platform. TensorFlow.js is an open source ML platform for Javascript and web development.

MNISTのPredictionをブラウザでやってみる

手始めに,Kerasで学習済みのモデルをTensorFlow.jsで読み込み,ブラウザ上でPredictionしてみましょう.

KerasでMNIST学習済みモデルを作成しよう!

まずは,Kerasでモデルを構築し,MNISTで学習させて,TensorFlow.jsに渡す学習済みモデルを作成しましょう.ここでは,Google Colabを用いて,こちらのコードを使用して学習させました.

File not found · keras-team/keras
Deep Learning for humans. Contribute to keras-team/keras development by creating an account on GitHub.

モデルをTensorFlow.jsで読める形に変換しよう!

作成したモデルは,そのままの形ではTensorFlow.jsに渡すことができません.TensorFlow.jsで利用できる形に変換してあげましょう.以下のコードのようにしてください.

model.save('model.h5')
!pip install tensorflowjs
!tensorflowjs_converter --input_format keras \
                       model.h5 \
                       target_path

まずモデルを保存し,tensorflowjsのconverterを使用してモデルを変換させます.

このモデルをダウンロードしておきましょう.

HTMLコードはこちら!

では実際のHTMLコードを示します.なお,こちらのコードは以下の記事を参考にしています.

TensorFlow.jsでMNIST学習済モデルを読み込みブラウザで手書き文字認識をする - Qiita
先日行われたTensorFlow Dev Summit 2018の「Machine Learning in JavaScript」で、Webブラウザ上で実行可能な機械学習ライブラリとしてTensor…
<!DOCTYPE html>
<html lang="ja">
<head>
    <script src="//cdnjs.cloudflare.com/ajax/libs/numeral.js/2.0.6/numeral.min.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/signature_pad@2.3.2/dist/signature_pad.min.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/@tensorflow/tfjs@0.13.0"> </script>
    <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.3/css/bootstrap.min.css" integrity="sha384-MCw98/SFnGE8fJT3GXwEOngsV7Zt27NXFoaoApmYm81iuXoPkFOJwJ8ERdknLPMO" crossorigin="anonymous">
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>ブラウザ上でMNISTをTensorFlow.jsで認識する</title>
    <style>
        .row{
            margin-bottom: 15px;
        }
    </style>
</head>
<body>
  <div class="container" style="max-width:850px;">
    <h1 class="title">ブラウザ上でMNISTをTensorFlow.jsで認識する</h1>
    <h2 class="subtitle">Kerasで学習ずみのモデルを使用</h2>
    <div class="row">
        <div class="col">
            <canvas id="draw-area" width="280" height="280" style="border: 2px solid;"></canvas>
        </div>
    </div>
    <div class="row">
        <div class="col">
            <button id="predict-button" class="btn btn-primary" type="button" onclick="prediction()" disabled>Prediction</button>
            <button class="btn btn-secondary" type="button" onclick="reset()">Reset</button>
        </div>
    </div>
    <div class="row">
        <div class="col">
            <table class="table">
                <thead>
                    <tr>
                        <th>Number</th>
                        <th>Accuracy</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th>0</th>
                        <td class="accuracy" data-row-index="0">-</td>
                    </tr>
                    <tr>
                        <th>1</th>
                        <td class="accuracy" data-row-index="1">-</td>
                    </tr>
                    <tr>
                        <th>2</th>
                        <td class="accuracy" data-row-index="2">-</td>
                    </tr>
                    <tr>
                        <th>3</th>
                        <td class="accuracy" data-row-index="3">-</td>
                    </tr>
                    <tr>
                        <th>4</th>
                        <td class="accuracy" data-row-index="4">-</td>
                    </tr>
                    <tr>
                        <th>5</th>
                        <td class="accuracy" data-row-index="5">-</td>
                    </tr>
                    <tr>
                        <th>6</th>
                        <td class="accuracy" data-row-index="6">-</td>
                    </tr>
                    <tr>
                        <th>7</th>
                        <td class="accuracy" data-row-index="7">-</td>
                    </tr>
                    <tr>
                        <th>8</th>
                        <td class="accuracy" data-row-index="8">-</td>
                    </tr>
                    <tr>
                        <th>9</th>
                        <td class="accuracy" data-row-index="9">-</td>
                    </tr>
                </tbody>
            </table>
        </div>
    </div>
  </div>
  <script src="https://code.jquery.com/jquery-3.3.1.slim.min.js" integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo" crossorigin="anonymous"></script>
  <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.3/umd/popper.min.js" integrity="sha384-ZMP7rVo3mIykV+2+9J3UJ46jBk0WLaUAdn689aCwoqbBJiSnjAK/l8WvCWPIPm49" crossorigin="anonymous"></script>
  <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.1.3/js/bootstrap.min.js" integrity="sha384-ChfqqxuZUCnJSK3+MXmPNIyE6ZbWh2IMqE241rYiqJxyMiZ6OW/JmZQ5stwEULTy" crossorigin="anonymous"></script>

  <script>
    // init SignaturePad
    const drawElement = document.getElementById('draw-area');
    const signaturePad = new SignaturePad(drawElement, {
       minWidth: 6,
       maxWidth: 6,
       penColor: 'white',
       backgroundColor: 'black',
    });

    // load pre-trained model
    let model;
    tf.loadModel('./model/model.json')
        .then(pretrainedModel => {
            document.getElementById('predict-button').removeAttribute('disabled', false);
            model = pretrainedModel;
    });

    function getImageData() {
      const inputWidth = 28;
      const inputHeight = 28;

      // resize
      const tmpCanvas = document.createElement('canvas').getContext('2d');
      tmpCanvas.drawImage(drawElement, 0, 0, inputWidth, inputHeight);

      // convert grayscale
      let imageData = tmpCanvas.getImageData(0, 0, inputWidth, inputHeight);
      for (let i = 0; i < imageData.data.length; i+=4) {
        const avg = (imageData.data[i] + imageData.data[i+1] + imageData.data[i+2]) / 3;
        imageData.data[i] = imageData.data[i+1] = imageData.data[i+2] = avg;
      }
      return imageData;
    }

    function getAccuracyScores(imageData) {
      const score = tf.tidy(() => {
        // convert to tensor (shape: [width, height, channels])
        const channels = 1; // grayscale
        let input = tf.fromPixels(imageData, channels);
        // normalized
        input = tf.cast(input, 'float32').div(tf.scalar(255));
        // reshape input format (shape: [batch_size, width, height, channels])
        input = input.expandDims();
        // predict
        return model.predict(input).dataSync();
      });
      return score;
    }

    function prediction() {
      const imageData = getImageData();
      const accuracyScores = getAccuracyScores(imageData);
      const maxAccuracy = accuracyScores.indexOf(Math.max.apply(null, accuracyScores));

      const elements = document.querySelectorAll(".accuracy");
      elements.forEach(el => {
        el.parentNode.classList.remove('table-success');
        const rowIndex = Number(el.dataset.rowIndex);
        if (maxAccuracy === rowIndex) {
          el.parentNode.classList.add('table-success');
        }
        var formatedNumber = numeral(accuracyScores[rowIndex]).format('0.00%');
        el.innerText = formatedNumber;
      })
    }

    function reset() {
      signaturePad.clear();
      let elements = document.querySelectorAll(".accuracy");
      elements.forEach(el => {
        el.parentNode.classList.remove('table-success');
        el.innerText = '-';
      })
    }

  </script>
</body>
</html>

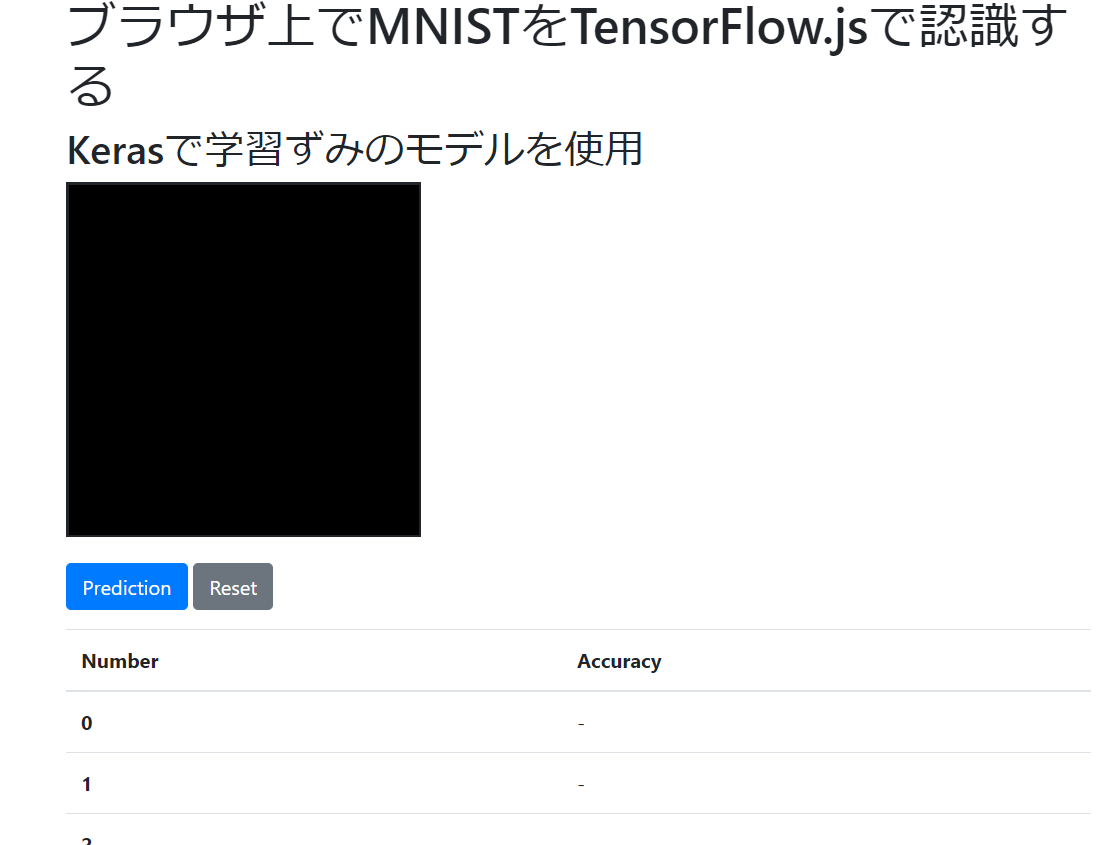

実際にHTMLを表示してみると,以下のようなページが表示されます.

ここで紹介したコードでは,Canvasに書いた文字をPredictionするとその文字がどれに該当するのかを予測することができます.

まとめ

今回はKerasで学習したモデルをブラウザ上で利用するためのライブラリ:TensorFlow.jsを紹介しました.Python環境だけでなく,JavaScriptでも利用できるので機械学習を活用する場が広がりますね.参考になれば幸いです.
